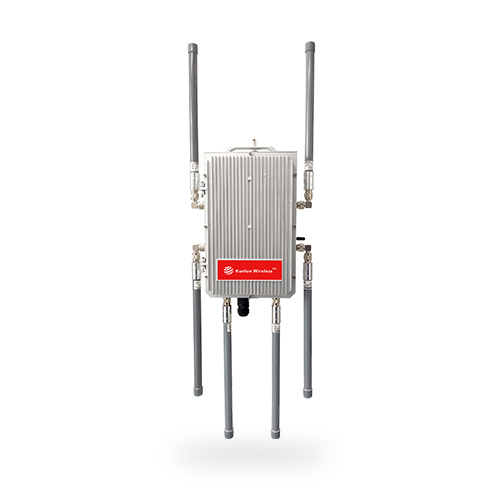

Mounting method:Pole

Dimensions (excluding accessories):343mm*210mm*98mm

Weight:5.73 kg

Ethernet port:1*2.5Gbps Base-T Port



Local power supply 48V 0.6A DC
PoE power supply Compliant with 802.3at
Bluetooth Support BLE 5.0
Antenna type Six high-performance external antennas
(For outdoor point-to-point transmission, replace them with directional antennas.)
Antenna gain 2.4 GHz: 6 dBi
5 GHz - 1: 8dBi
5 GHz - 2: 8 dBi
Operating frequency bands 802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.15 GHz - 5.35GHz (for China only)
802.11ax/b/g/n: 2.4 GHz - 2.483 GHz (for China only)
Wi-Fi data rate 2.4 GHz: 2x2, 802.11n, 573Mbps
5 GHz - 1: 2x2, 802.11ac, 1201Mbps
5 GHz - 2: 4x4, 802.11ac, 2402Mbps
Wi-Fi power 2.4 GHz: 21.5 dBm @ MCS7/BW20 (EVM-30dB)
5 GHz - 1: 21.5 dBm @ MCS9/BW80 (EVM-33.5dB)
5 GHz - 2: 21.5 dBm @ MCS9/BW80 (EVM-33.5dB)
Maximum total transmitting power 2.4 GHz: 23 dBm (combined power)
5 GHz - 1: 23 dBm (combined power)
5 GHz - 2: 23 dBm (combined power)
The actual transmission power is subject to relevant regulations.
Modulation technology OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps (dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps)
MIMO-OFDM (11n): MCS 0-31
MIMO-OFDM (11ac): MCS 0-9
MIMO-OFDM (11ax): MCS 0-11
Modulation mode 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Power adjustment Automatic
Reset Supported by hardware and software
Operating temperature / Storage temperature -40ºC~65ºC / -40ºC~70ºC
Operating humidity 0%~100% (non-condensing)
Protection class IP67
Altitude -60 m~5000 m
Operating air pressure 53 kPa~106 kPa
Maximum total power < 30 W
EMC GB9254, EN301 489, EN55022, FCC Part 15, RSS-210
Certification FCC/CE/CCC/SRRC/RoHS
MTBF > 250000 hours


802.11ax compliance Operating frequency bands 5GHz+2.4GHz
11ax Max Link Rate X9O:2402Mbps+1201Mbps+573Mbps
X3O:1201Mbps + 573Mbps
A-MPDU Supported
A-MPDU Supported
OFDMA Supported
MU-MIMO Supported
TxBF Supported
MLD Supported
MRC Supported
STBC Supported
Operating frequency bands 5 GHz
WLAN Maximum number of users per band 256
Virtual AP 4
RTS/CTS Supported
Guest network Supported
Smart device SSID Supported
Wired networking Automatic detection and authorization
Wireless Mesh networking Automatic detection and authorization
Automatic path switching Supported
Automatic link fault detection and recovery Supported
Advanced networking features Automatic network-wide channel adjustment Supported
Automatic network-wide bandwidth adjustment Supported
Automatic network-wide power adjustment Supported
Automatic network management Automatic networking with distributed APs, which allows you to add or replace APs as needed
Security policy Encryption AES, WPA3
802.11i Supported
Authentication MAC Address/PSK
Client isolation 1. Layer-2 wireless client isolation
2. SSID isolation
Forwarding security Packet filter, MAC address filter, and broadcast storm suppression
SSID-VLAN binding Supported
Management frame protection (802.11w) Supported
Layer-2 and layer-3 functions IP address configuration Static IP address, DHCP, and PPPoE
Local forwarding Based on SSID and VLAN
Multicast IGMP snooping
Advanced Wi-Fi features 802.11e WMM
Priority Ethernet port 802.1P identification and marking
  Mapping from wireless priorities to wired priorities
AI-QoS Mapping based on application traffic and air interface queue
ATF ATF based on clients and SSIDs
Automatic channel/bandwidth/power selection ATF for the guest network
Load balancing Based on traffic / number of users / bands / air interface load
802.11k / 802.11v / 802.11r Supported
AP steering Supported
Band steering Supported
Packet-by-packet power control Supported
Multicast enhancement Multicast-to-unicast (IPv4)
Inter-node Beamforming+ Supported
Power saving PPC Supported
Green AP mode Supported
Dynamic MIMO power saving Supported
E-APSD Supported
WMM Power Save Supported
Installation, management, and maintenance Wizard-guided installation with Bluetooth and app Supported
Local management with app / Remote management Supported
Cloud AC Engine Supported
Local AC management Supported
Remote maintenance Supported
AP locating Supported
